TODOELEC Waterproof Electrical Heat Shrink Solder Seal Ring Butt Wire Connectors Kit Insulation Butt Wire Terminal Heat Shrinkable Solder Sleeve Wire Splices Set
- Product SKU: TD-SST-S-2101-60
- Order within

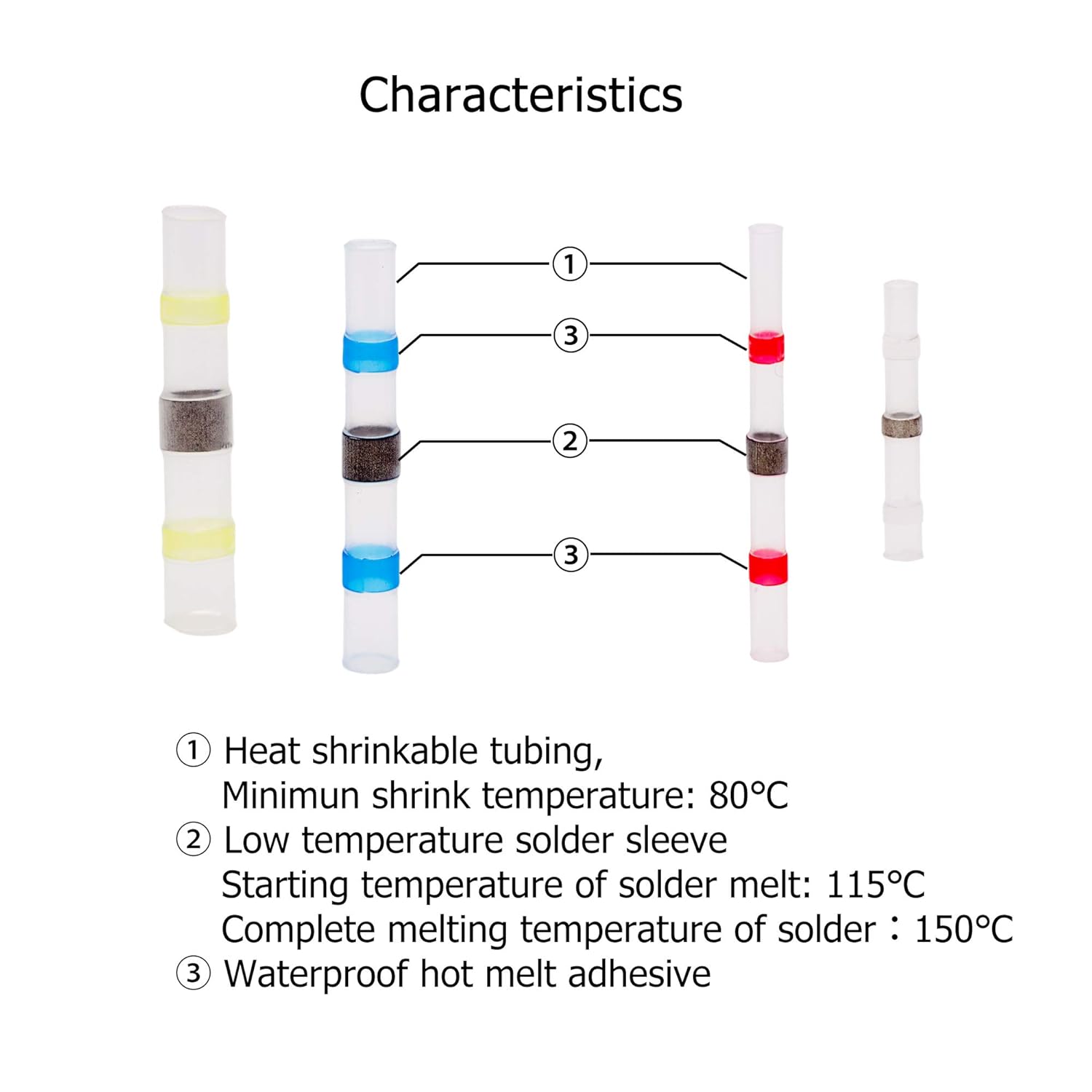

- Low temperature solder seal ring design, this ensures full melting when temperature is between 115˚C and 150˚C and connect wires tightly together with molten tin, The effect same with soldering iron.
- High quality 2:1 shrinkage tubing has adhesives sealing ring to provide a 360-degree secure seal. It's flame-retardant, waterproof.

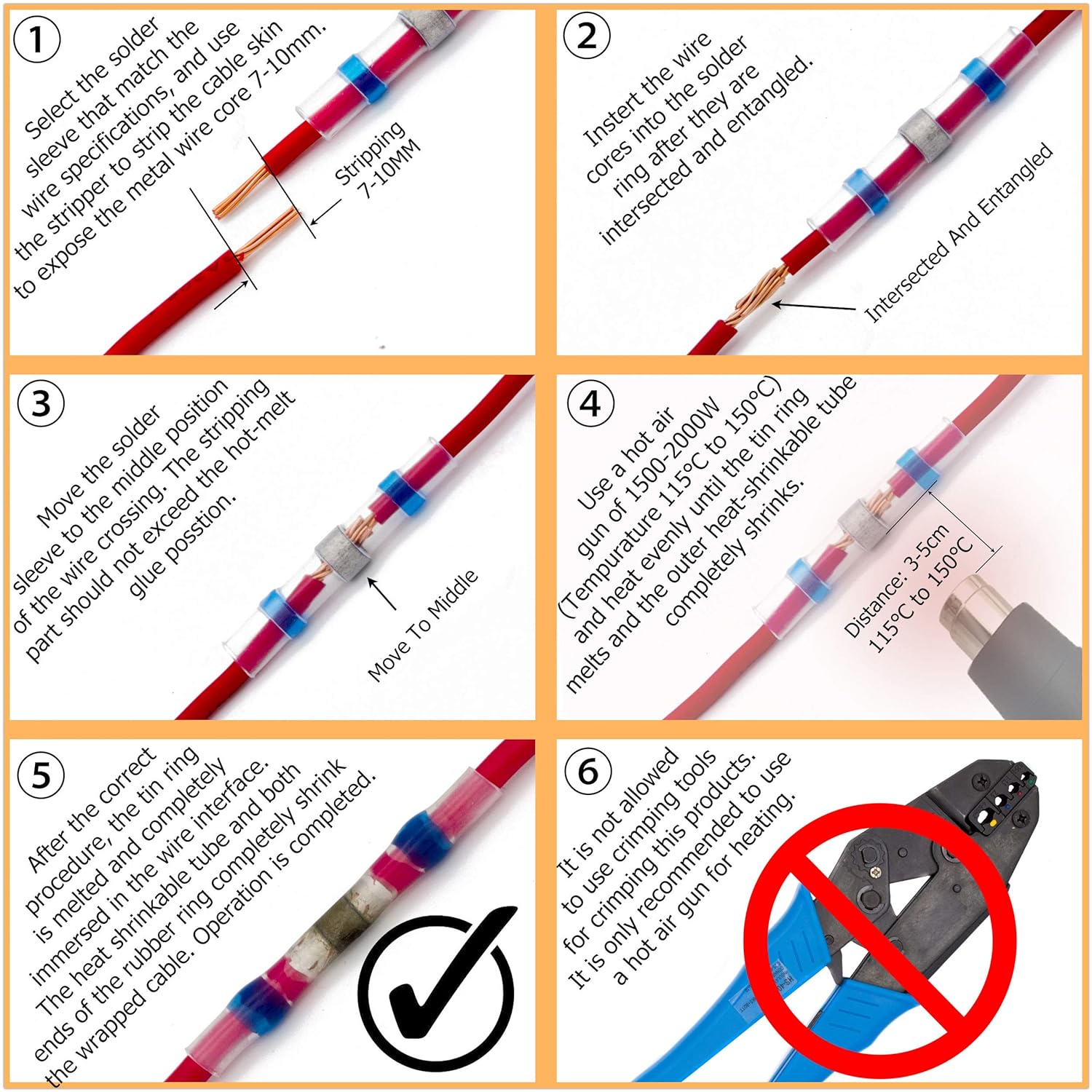

- Welding and sealing are completed at one time by hot air gun, no need other tools.
- Protect the line connection in extreme temperatures -55℃～125℃, and provide excellent insulation, waterproof, oil andcorrosion protection, wearproof, high tensile strength after correct connection.
- Compliant with all electrical and electronics standards, Perfect for marine and automobile applications, whether you are working on your Boat, Vehicle, Home or Scientific project, our connector will ensure strong watertight seal to make sure everything bond correctly.

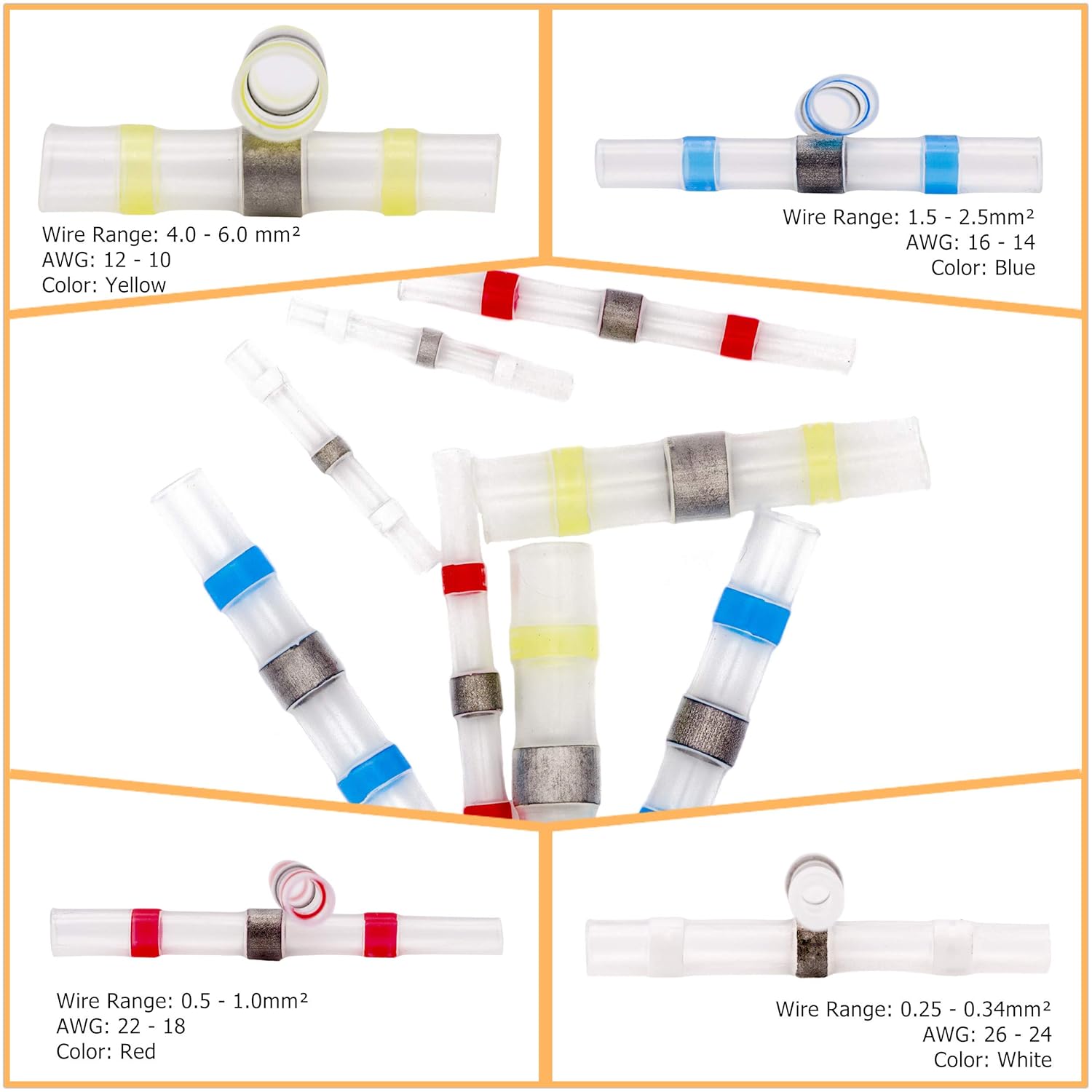

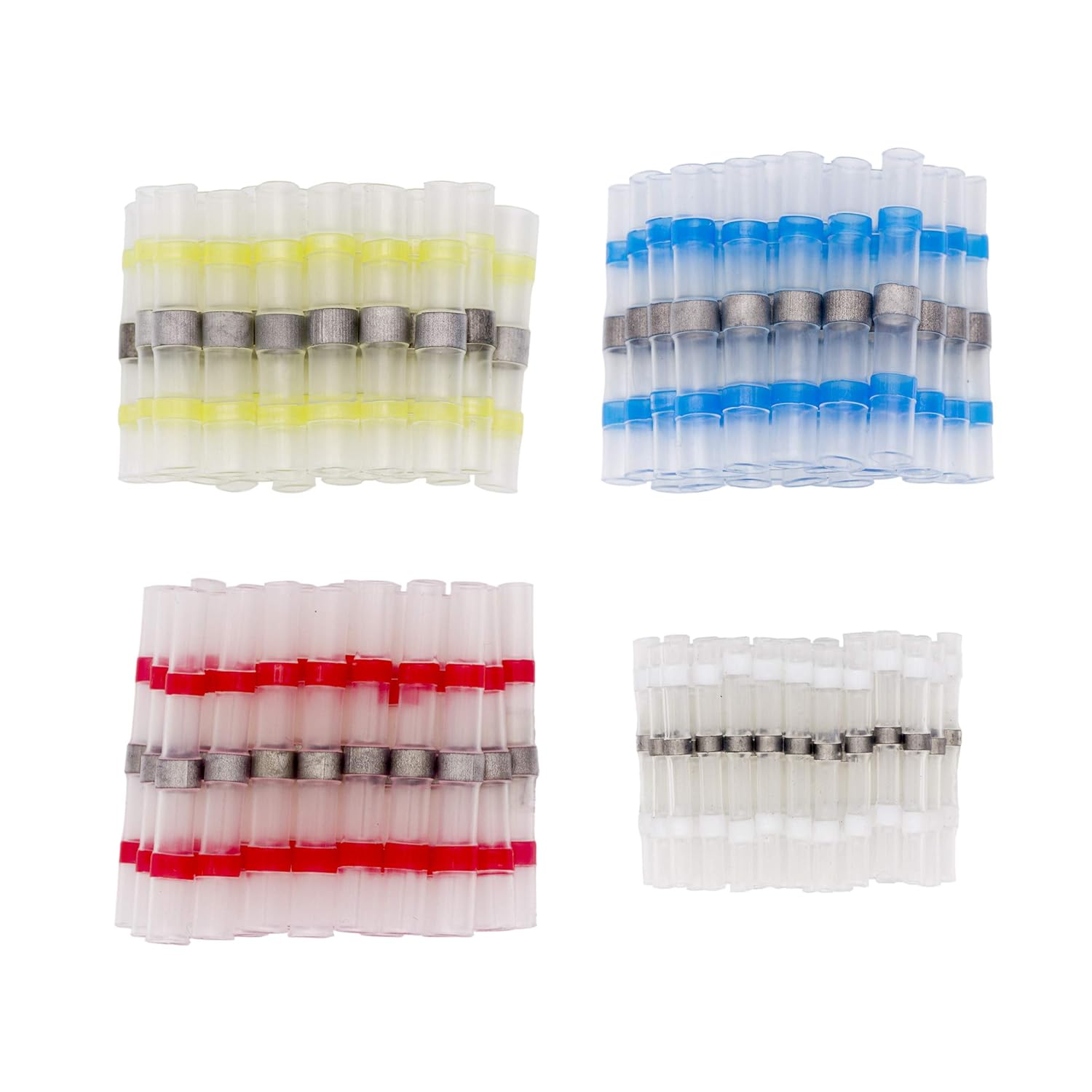

- Butt connector assortment includes white, red, blue and yellowconnectors that can be used on wire AWG from 26 to 10. All connectors arepackaged in one free tool box and easy access and carry.
[Temperature Range]:
Operating temperature : -55℃～125℃.
Startshrink temperature: 80˚C.
Starting temperature of solder melt: 115˚C.
Complete melting temperature of solder：150℃.
[Package Detailed]:

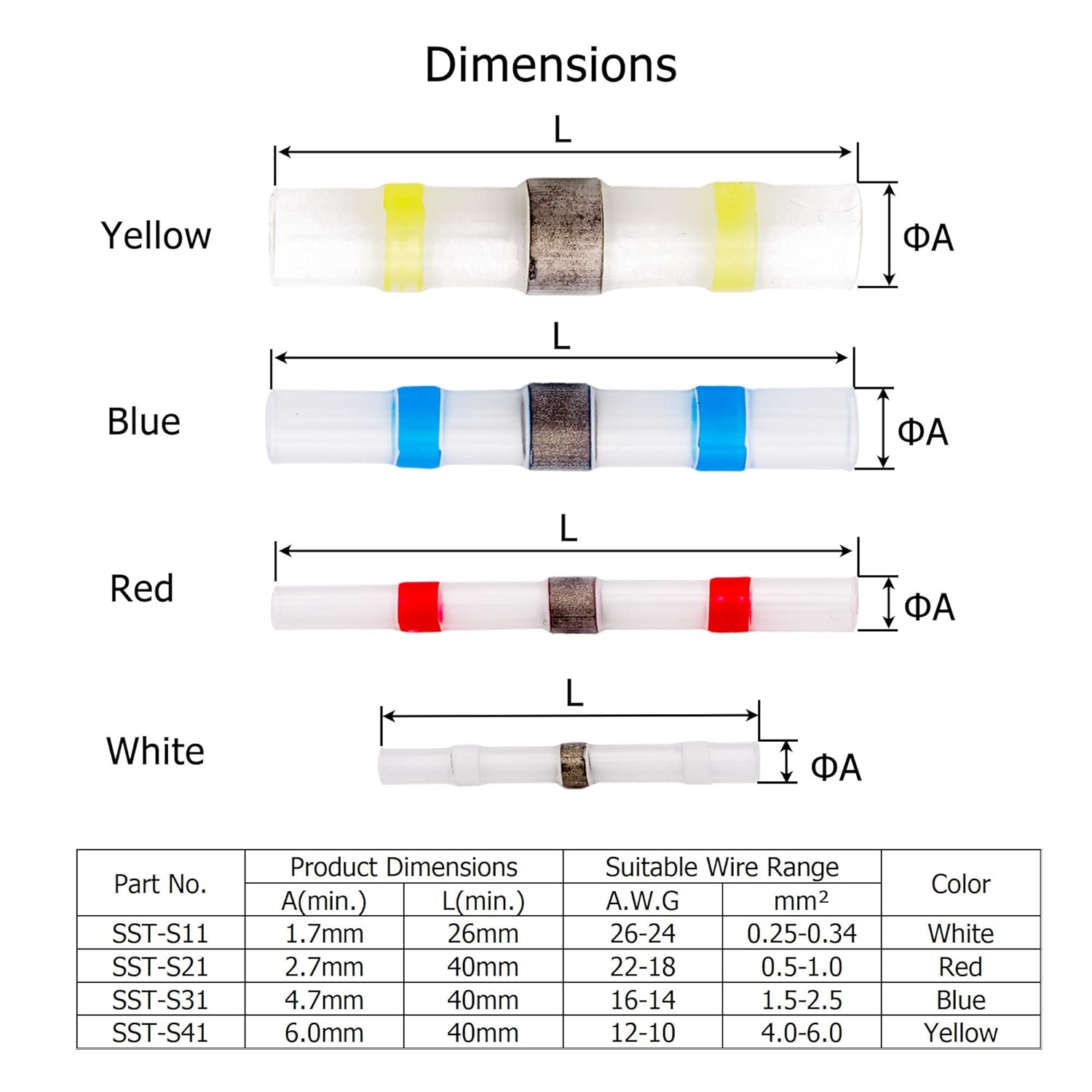

| Model | Color | Suitable Wires | QTY | |
| AWG | MM² | |||
| SST-S11 | White | 26-24 | 0.25-0.34 | 20 |
| SST-S21 | Red | 22-18 | 0.5-1.0 | 23 |
| SST-S31 | Blue | 16-14 | 1.5-2.5 | 12 |
| SST-S41 | Yellow | 12-10 | 4.0-6.0 | 5 |
| Model | Color | Suitable Wires | QTY | |
| AWG | MM² | |||
| SST-S11 | White | 26-24 | 0.25-0.34 | 24 |
| SST-S21 | Red | 22-18 | 0.5-1.0 | 36 |
| SST-S31 | Blue | 16-14 | 1.5-2.5 | 30 |
| SST-S41 | Yellow | 12-10 | 4.0-6.0 | 10 |
| Model | Color | Suitable Wires | QTY | |
| AWG | MM² | |||
| SST-S11 | White | 26-24 | 0.25-0.34 | 40 |
| SST-S21 | Red | 22-18 | 0.5-1.0 | 80 |
| SST-S31 | Blue | 16-14 | 1.5-2.5 | 60 |
| SST-S41 | Yellow | 12-10 | 4.0-6.0 | 20 |
| Model | Color | Suitable Wires | QTY | |
| AWG | MM² | |||
| SST-S11 | White | 26-24 | 0.25-0.34 | 70 |
| SST-S21 | Red | 22-18 | 0.5-1.0 | 100 |
| SST-S31 | Blue | 16-14 | 1.5-2.5 | 100 |
| SST-S41 | Yellow | 12-10 | 4.0-6.0 | 30 |
[Warranty]:
Please contact us to get more detailed about warranty.
[Characteristics]:
- Low temperature solder seal ring design, this ensures full melting when temperature is between 115˚C and 150˚C and connect wires tightly together with molten tin, The effect same with soldering iron.
- High quality 2:1 shrinkage tubing has adhesives sealing ring to provide a 360-degree secure seal. It's flame-retardant, waterproof.
- Welding and sealing are completed at one time by hot air gun, no need other tools.
- Protect the line connection in extreme temperatures -55℃～125℃, and provide excellent insulation, waterproof, oil andcorrosion protection, wearproof, high tensile strength after correct connection.
- Compliant with all electrical and electronics standards, Perfect for marine and automobile applications, whether you are working on your Boat, Vehicle, Home or Scientific project, our connector will ensure strong watertight seal to make sure everything bond correctly.
- Butt connector assortment includes white, red, blue and yellowconnectors that can be used on wire AWG from 26 to 10. All connectors arepackaged in one free tool box and easy access and carry.
[Temperature Range]:
Operating temperature : -55℃～125℃.
Startshrink temperature: 80˚C.
Starting temperature of solder melt: 115˚C.
Complete melting temperature of solder：150℃.
[Package Detailed]:
| Model | Color | Suitable Wires | QTY | |
| AWG | MM² | |||
| SST-S11 | White | 26-24 | 0.25-0.34 | 20 |
| SST-S21 | Red | 22-18 | 0.5-1.0 | 23 |
| SST-S31 | Blue | 16-14 | 1.5-2.5 | 12 |
| SST-S41 | Yellow | 12-10 | 4.0-6.0 | 5 |
| Model | Color | Suitable Wires | QTY | |
| AWG | MM² | |||
| SST-S11 | White | 26-24 | 0.25-0.34 | 24 |
| SST-S21 | Red | 22-18 | 0.5-1.0 | 36 |
| SST-S31 | Blue | 16-14 | 1.5-2.5 | 30 |
| SST-S41 | Yellow | 12-10 | 4.0-6.0 | 10 |
| Model | Color | Suitable Wires | QTY | |
| AWG | MM² | |||
| SST-S11 | White | 26-24 | 0.25-0.34 | 40 |
| SST-S21 | Red | 22-18 | 0.5-1.0 | 80 |
| SST-S31 | Blue | 16-14 | 1.5-2.5 | 60 |
| SST-S41 | Yellow | 12-10 | 4.0-6.0 | 20 |
| Model | Color | Suitable Wires | QTY | |
| AWG | MM² | |||
| SST-S11 | White | 26-24 | 0.25-0.34 | 70 |
| SST-S21 | Red | 22-18 | 0.5-1.0 | 100 |
| SST-S31 | Blue | 16-14 | 1.5-2.5 | 100 |
| SST-S41 | Yellow | 12-10 | 4.0-6.0 | 30 |
[Warranty]:
Please contact us to get more detailed about warranty.
